ROAD
Tailwind carbon road disc rims are praised for their unmatched weight-to-rigidity ratio, making them among the lightest on the market. Tailwind rims are developed using advanced Computational Fluid Dynamics (CFD) techniques, so each shape is optimized for minimal drag. Additionally, Tailwind rims have different internal widths to provide the optimal rim to tire width ratio, ensuring the lowest rolling resistance, improved grip and increased comfort.
In short:
- Unmatched weight stiffness ratio
- Excellent aerodynamic properties thanks to CFD techniques
- Lightweight design for effortless acceleration
- Optimized tire to rim width ratio for lower rolling resistance, improved grip and increased comfort
- Superior responsiveness and agility
The Road Disc Tailwind range consists of three series of rims that will take your riding experience to new heights:
ULS
Rims designed to shine on the asphalt, with an ultralight construction specifically optimized for use with 28-30 mm road tires. Go there >
AR
High-volume multi purpose rims designed for optimal performance with wider road tires from 28 mm and up, while also being perfect for use with gravel tires.
Go there >
WLS
With an all-new waved rim design for added aerodynamic benefits and a high-volume multi-purpose design, these rims are suitable for both wider road tires from 28 mm and up as well as gravel tires. Go there >
Tailwind wheels are built as standard with DT Swiss 240EXP hubs and steel Sapim spokes, Erase hubs with Berd spokes or HW hubs with Carbon spokes. For fully custom wheels with Tailwind rims, please refer to our
custom wheel building company Wheel-Tec.
SERIES
CHOOSE YOUR RIM
Choose the type that fits your needs perfectly.
| Deployment range >> | ROAD | ALLROAD | GRAVEL |
|---|---|---|---|
| ULS | ✔︎ | - | - |
| AR | ✔︎ | ✔︎ | ✔︎ |
| WLS | ✔︎ | ✔︎ | ✔︎ |

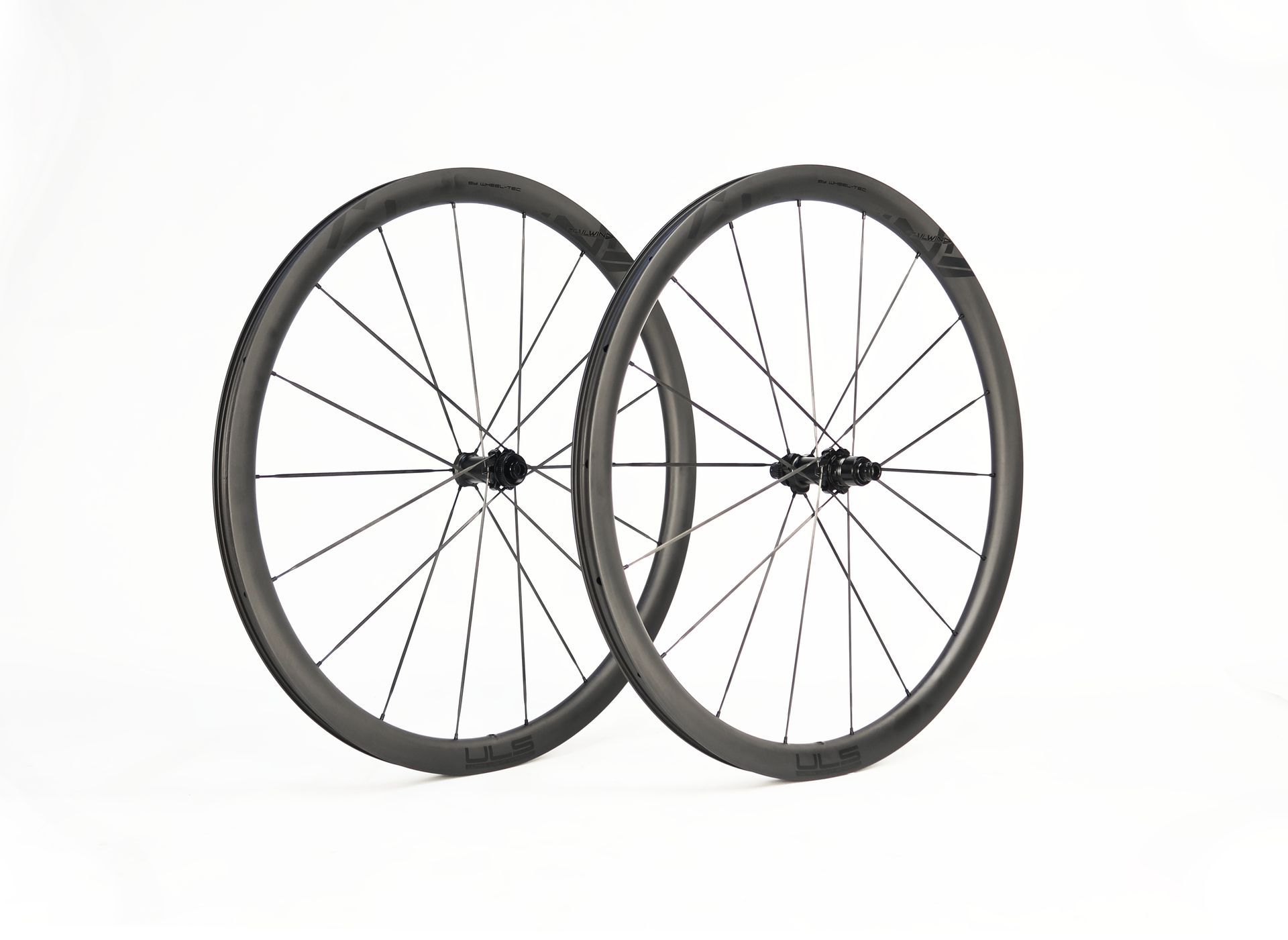

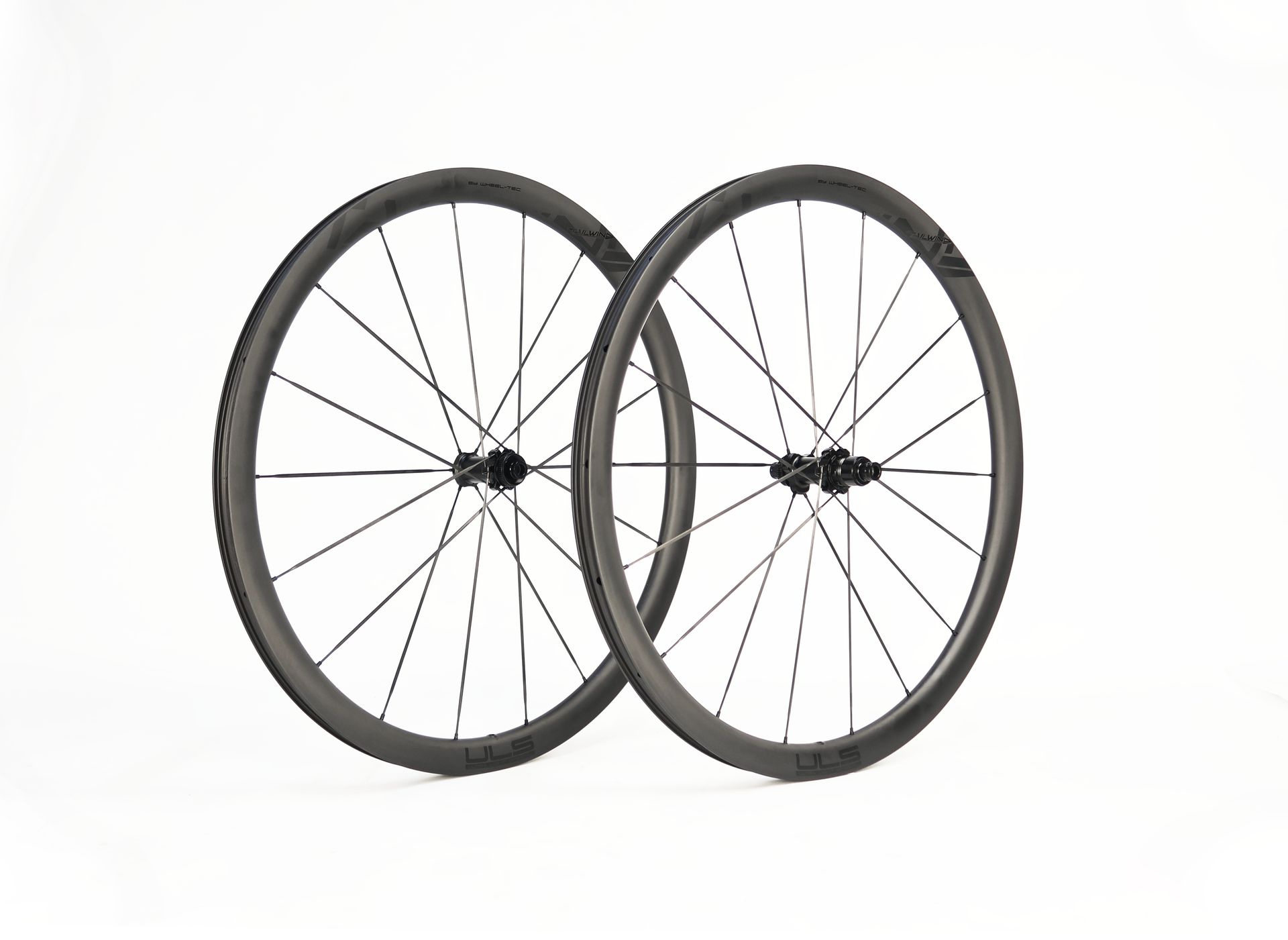

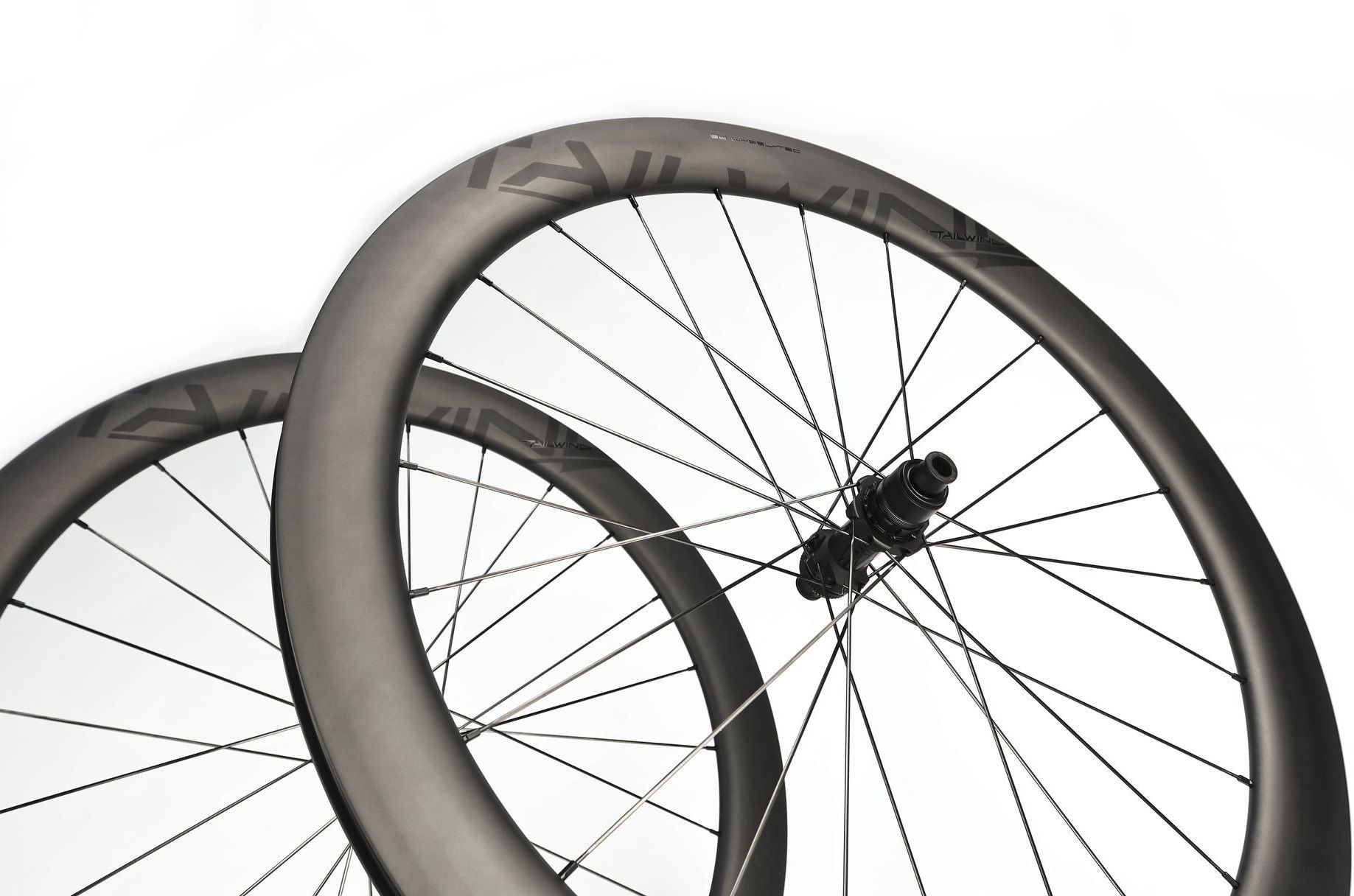

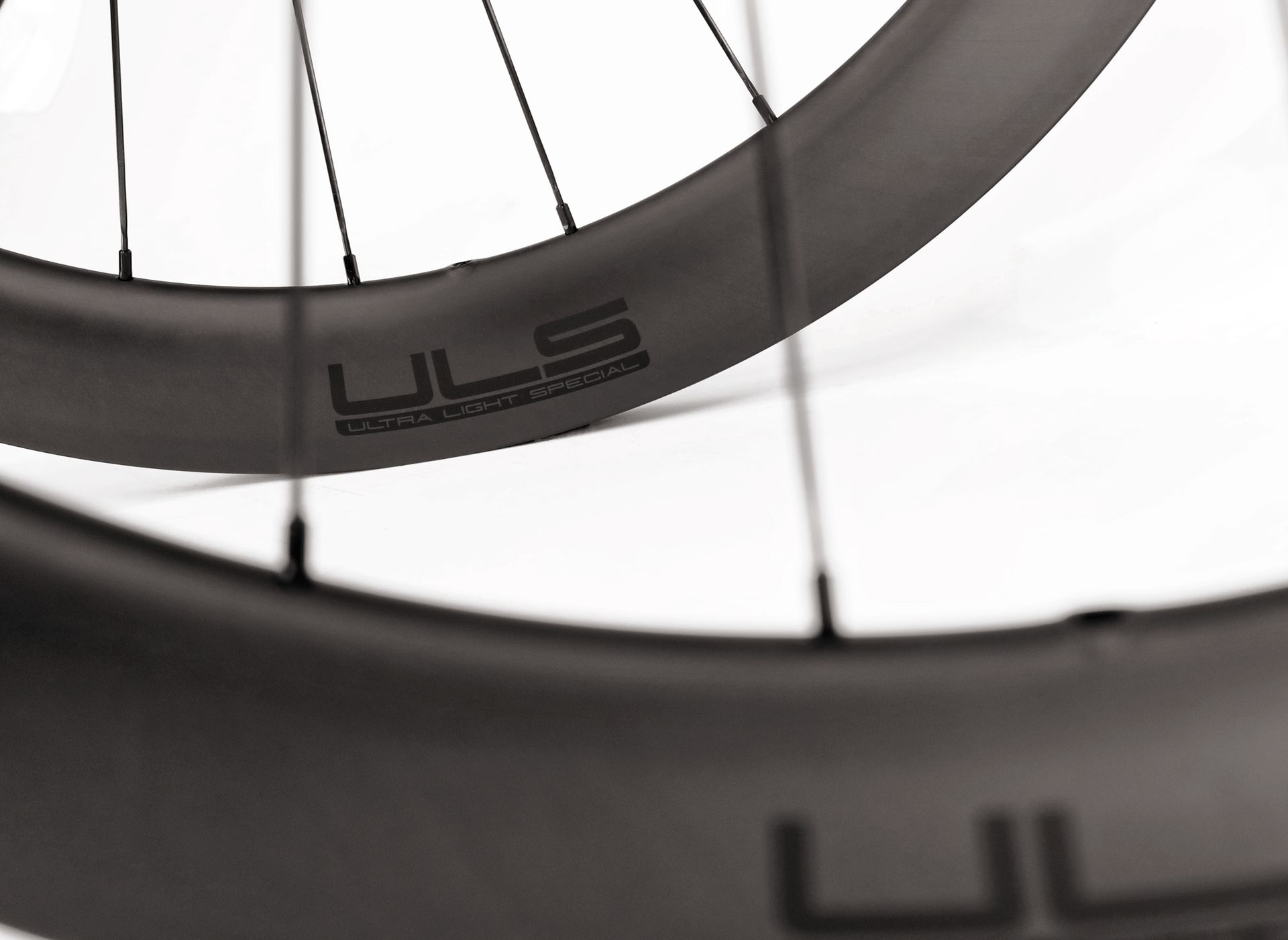

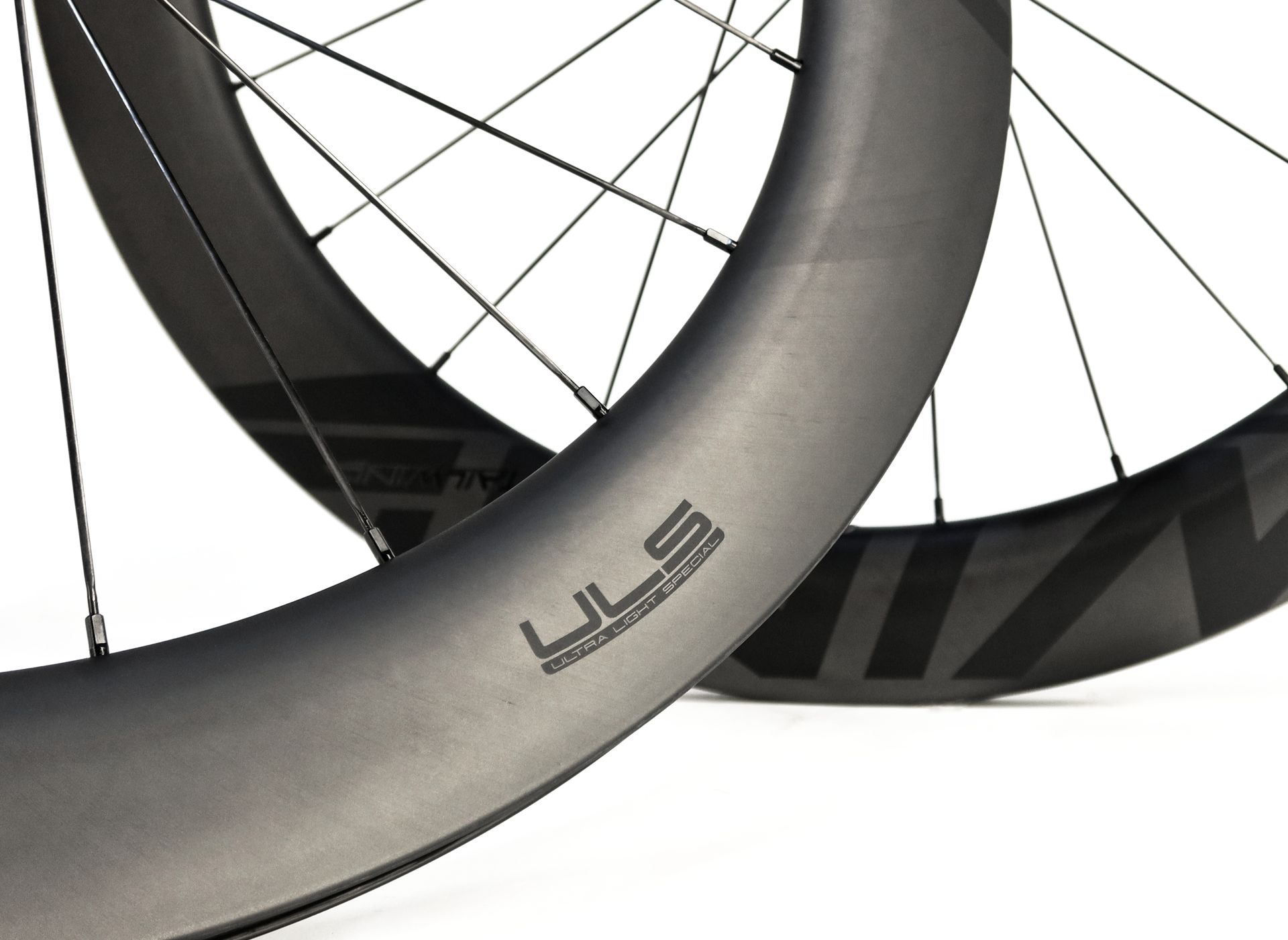

ULS-SERIES
“Designed for Asphalt, Optimized for Performance.”
ALLROUND
Durable and fast
DETAILS
Refined finish
FAST
Light & Aero
Road
ULS-SERIES

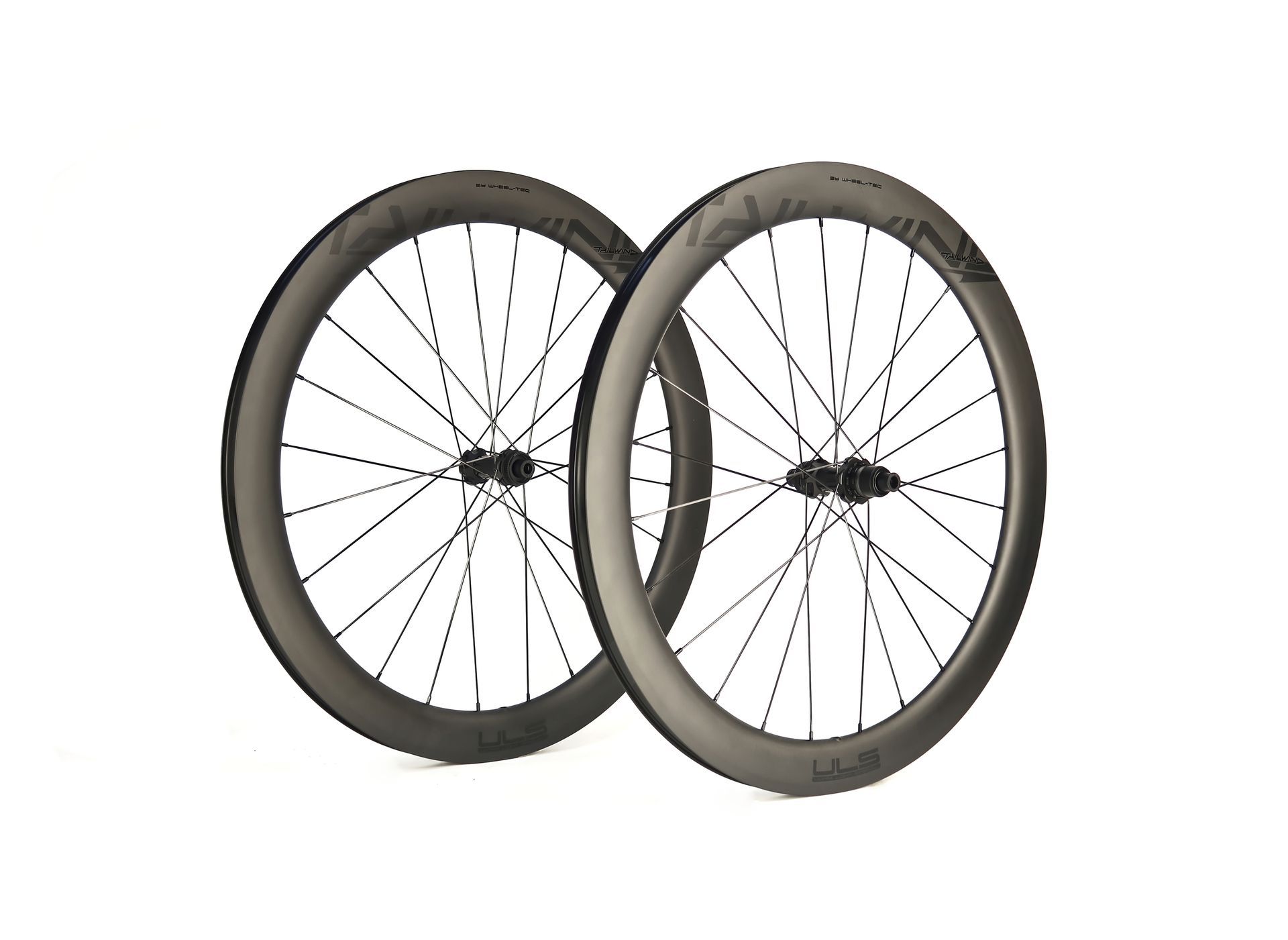

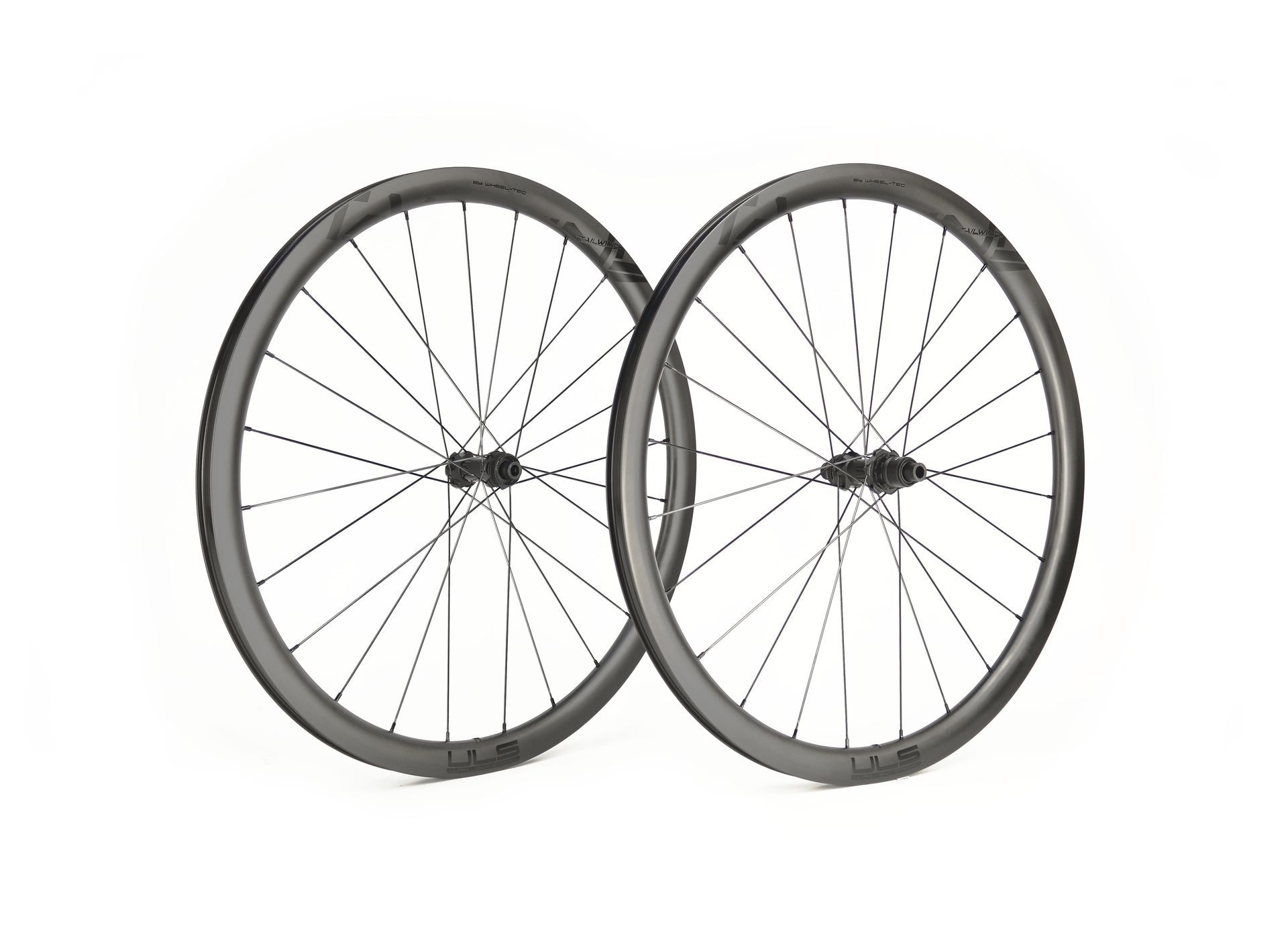

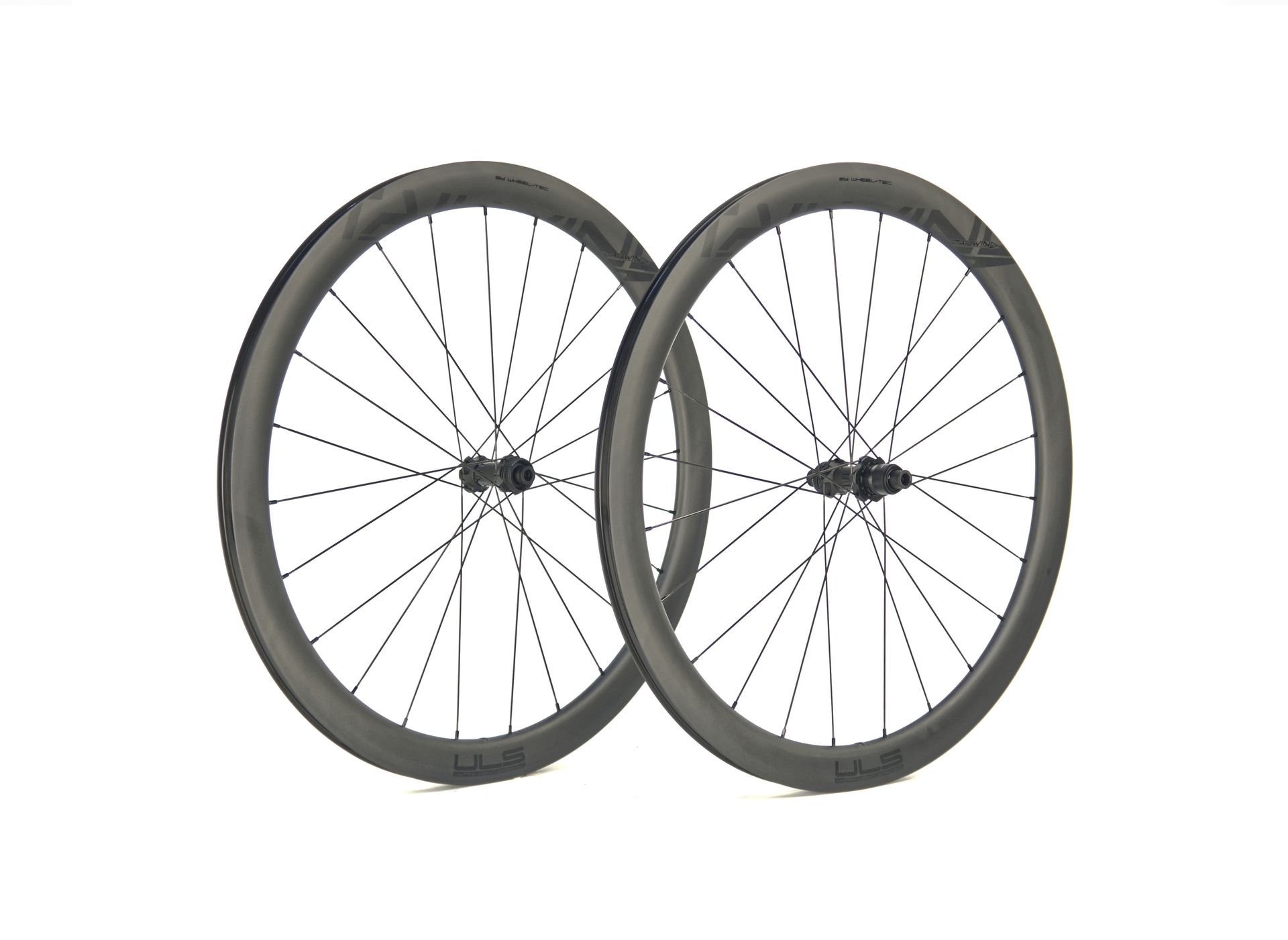

SPECS ULS23 SERIE
ULS23 in General:
28,5mm Width Ext / 23mm Width Int / 28-30mm tires
Model details:
ULS23/35: 35mm Depth / 330g
ULS23/45: 45mm Depth / 375g
ULS23/55: 55mm Depth / 430g
Meet the ULS series: rims designed to shine on the asphalt, with an ultralight construction specifically optimized for use with 28-30 mm road tires. Go for maximum performance and comfort on the road with Tailwind ULS rims - your ultimate companion for demanding rides.

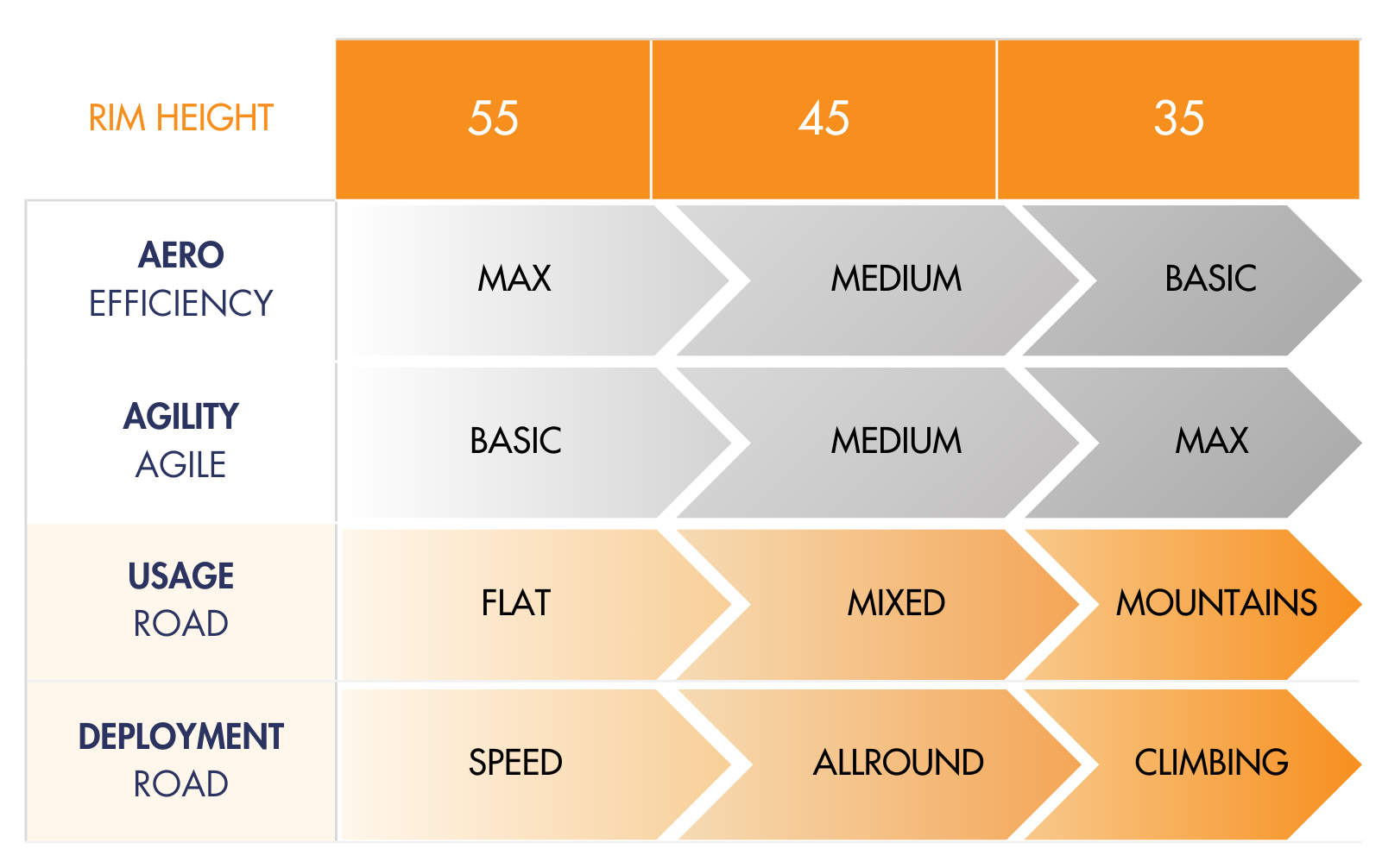

The ULS series is available in (internal) width size 23 and in the profile heights 35|45|55mm, see specs.

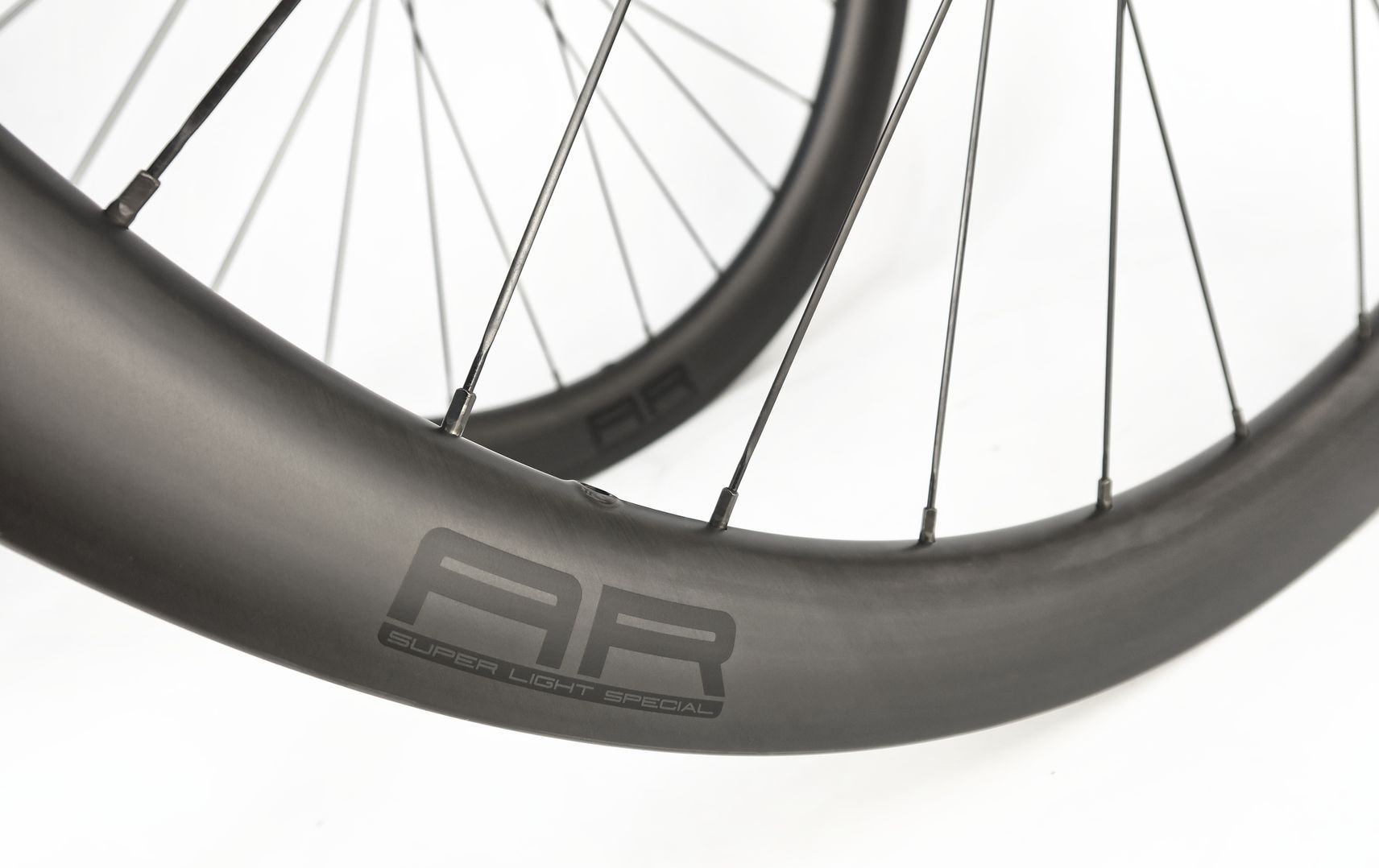

AR-SERIES
Tailwind AR Rims:
Master on Asphalt, Powerful on Gravel.
ALLROUND
Versatile like no other
DETAILS
Top finish & build quality
FAST
Versatile & fast
Road, Multi, Gravel
AR-SERIES
SPECS AR25 SERIES
AR25 in General:

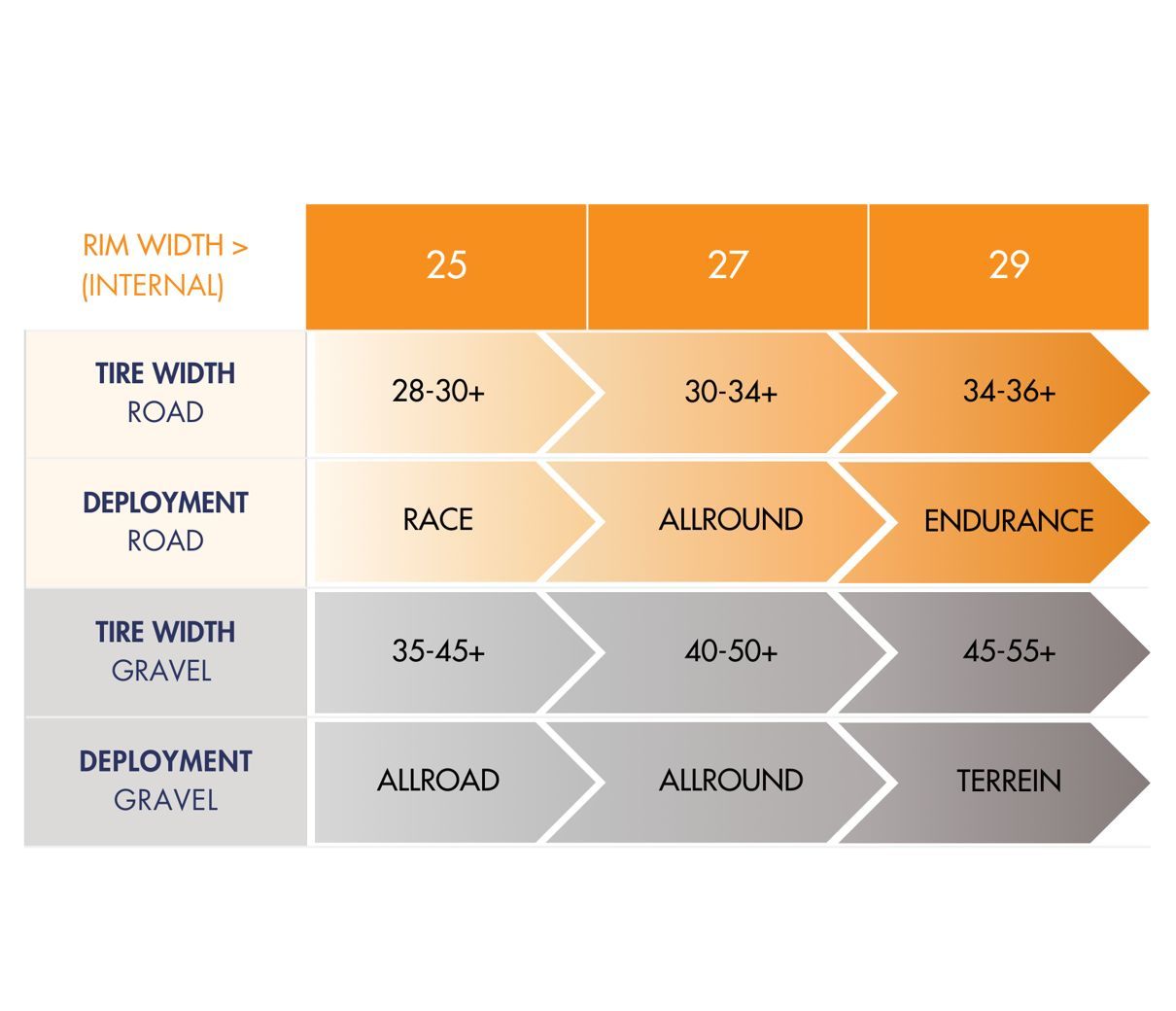

31,5mm Width Ext / 25mm Width Int / 28mm+ tires
Model Details:
AR25/30: 30mm Depth / 350g
AR25/40: 40mm Depth / 380g
AR25/45: 45mm Depth / 410g
AR25/50: 50mm Depth / 420g
AR25/58: 58mm Depth / 460g
SPECS AR27/29/32 SERIES
AR27 in general:
33,5mm Width Ext / 27mm Width Int / 30mm+ tires
Model details:
AR27/35: 30mm Depth / 380g
AR27/45: 45mm Depth / 420g
AR29 in general:
34,5mm Width Ext / 29mm Width Int / 32mm+ tires
Model details:
AR29/45: 45mm Depth / 425g
AR32 in general:
37,5mm Width Ext / 32mm Width Int / 34mm+ tires
Model details:
AR32/45: 45mm Depth / 425g
Discover the versatility of the Tailwind AR range: the ultimate choice for riding on mixed surfaces. These high-volume multi-purpose rims are designed for optimal performance with wider road tyres from 28 mm upwards, while also being perfect for use with gravel tyres. Whether you're tearing across asphalt or having off-road adventures, the Tailwind AR rims will make you feel at home everywhere.

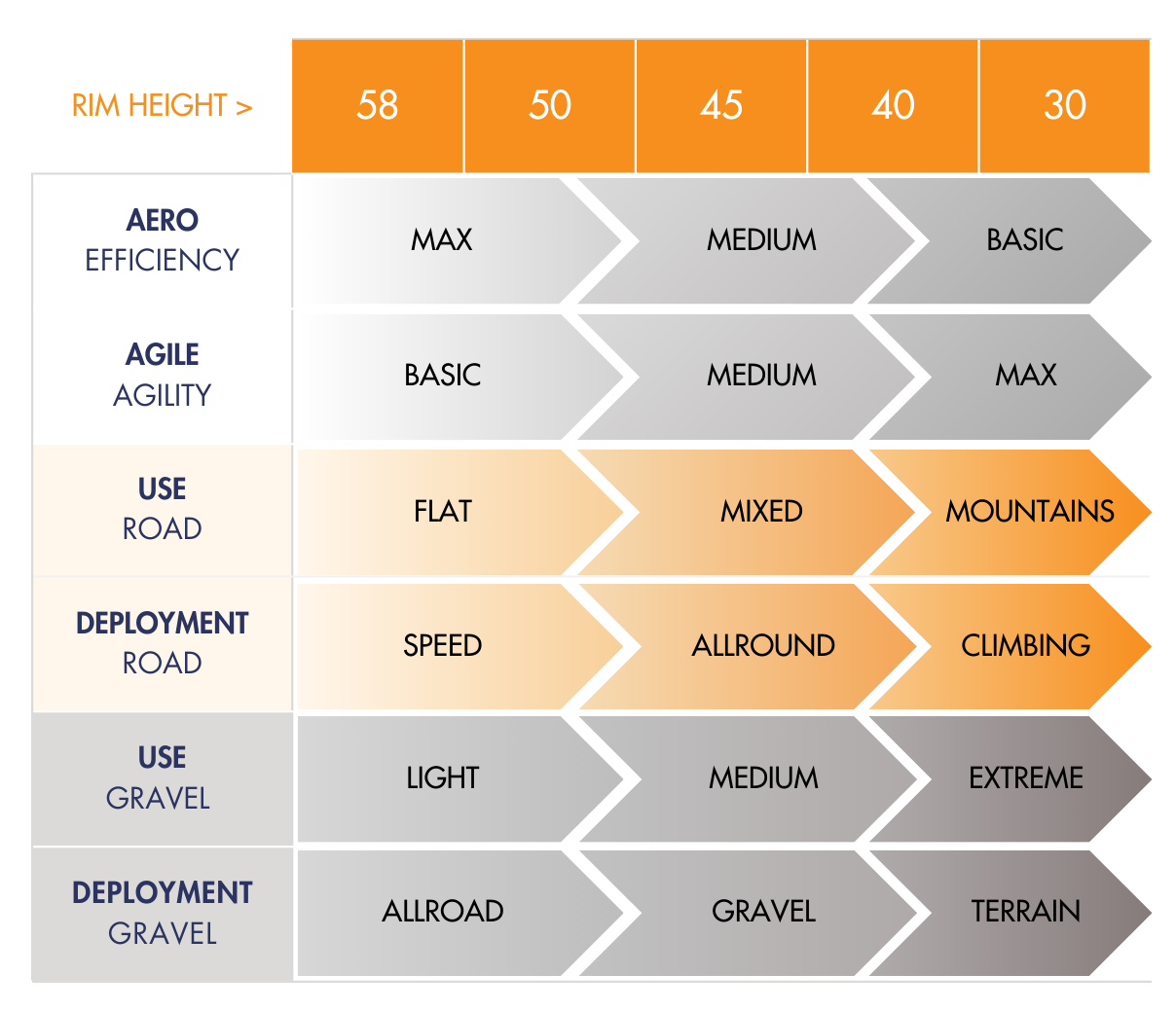

The AR series is available in (internal) width sizes 25/27/29/32 and per width size in various heights in the range of 30|35|40|45|50|58mm, see specs.

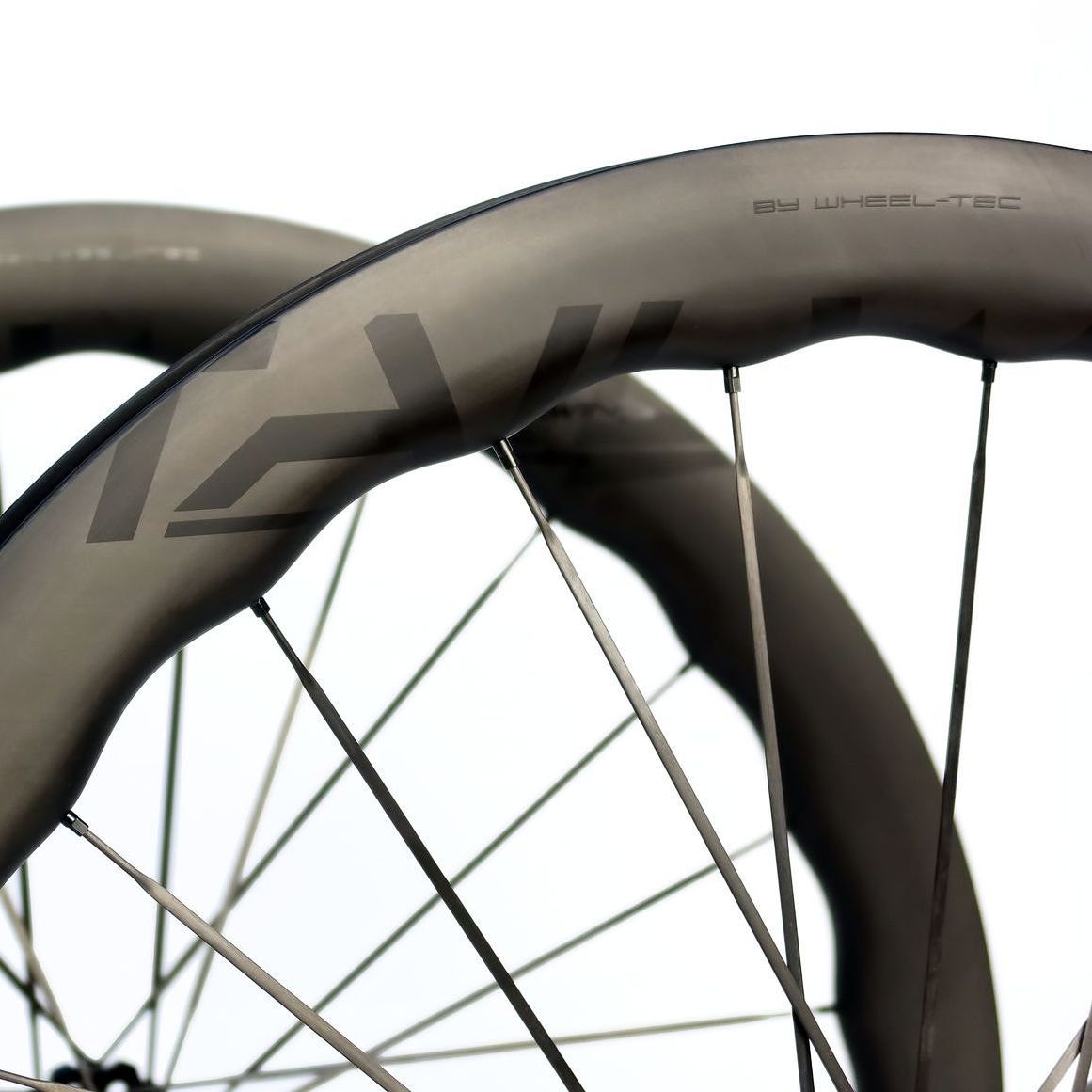

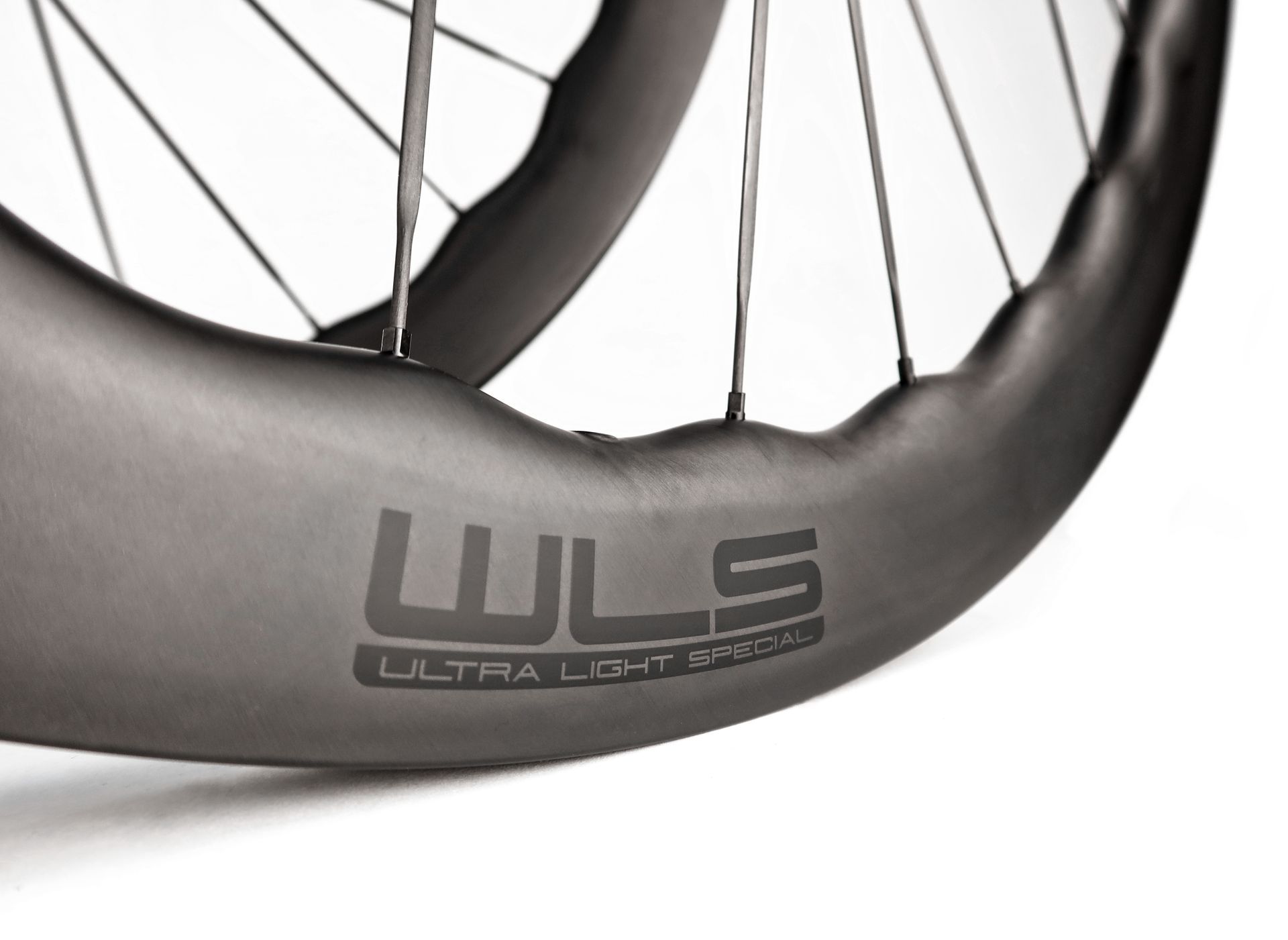

WLS-SERIES
"Innovate Your Rides, Expand Your Limits on Any Terrain."
COMPETITION
Aero/Light/Stable
DETAILS
Top finish & build quality
FAST
Versatile & fast
Road, Multi, Gravel
WLS-SERIE
SPECS WLS25 SERIE

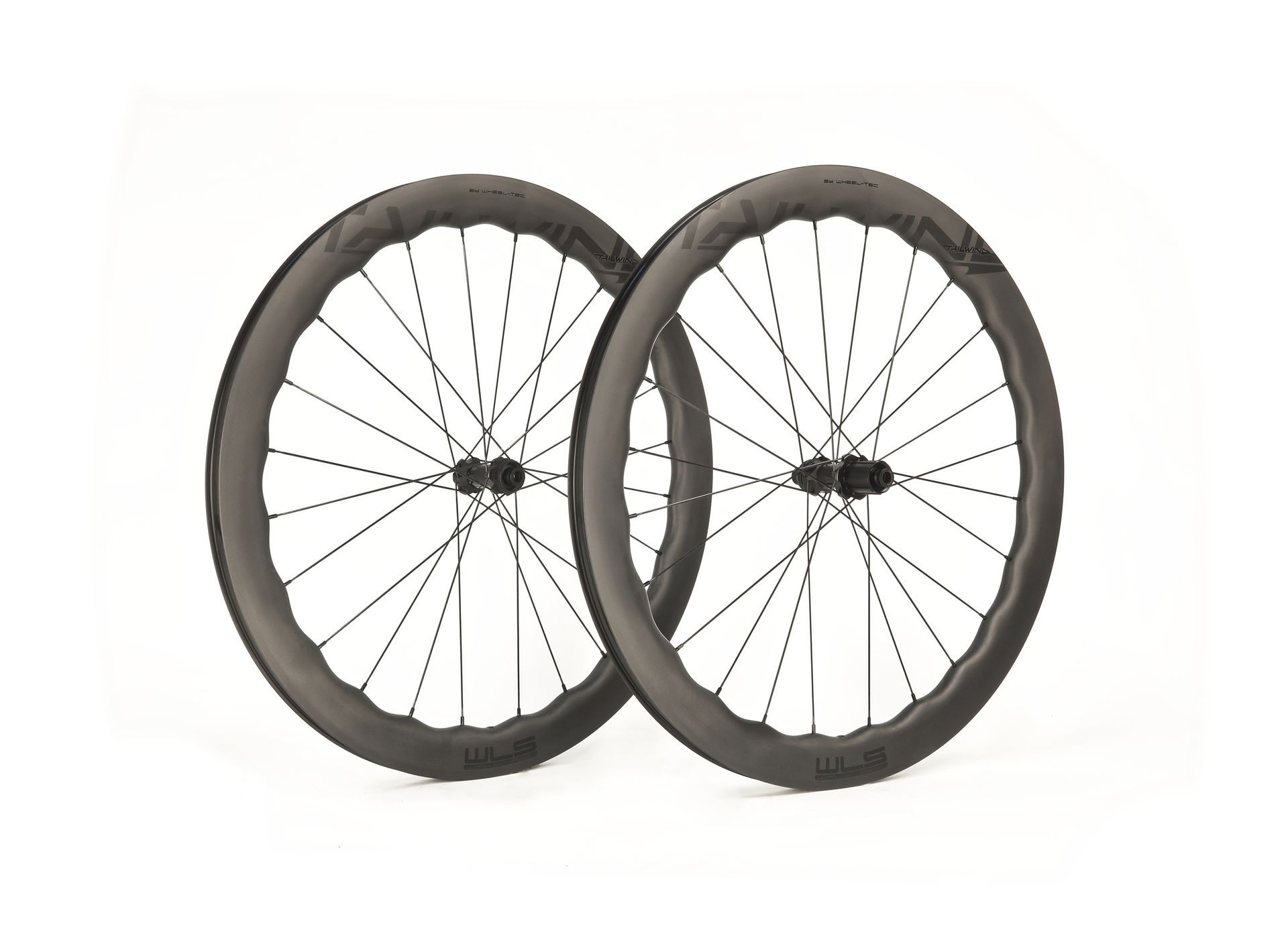

WLS25 in General:
31,5mm Width Ext / 25mm Width Int / 35mm+ tires
Model details:
WLS25/55: 55mm Depth / 420g
SPECS WLS27 SERIE
WLS25 in General:
31,5mm Width Ext / 25mm Width Int / 35mm+ tires
Model details:
WLS25/55: 55mm Depth / 420g

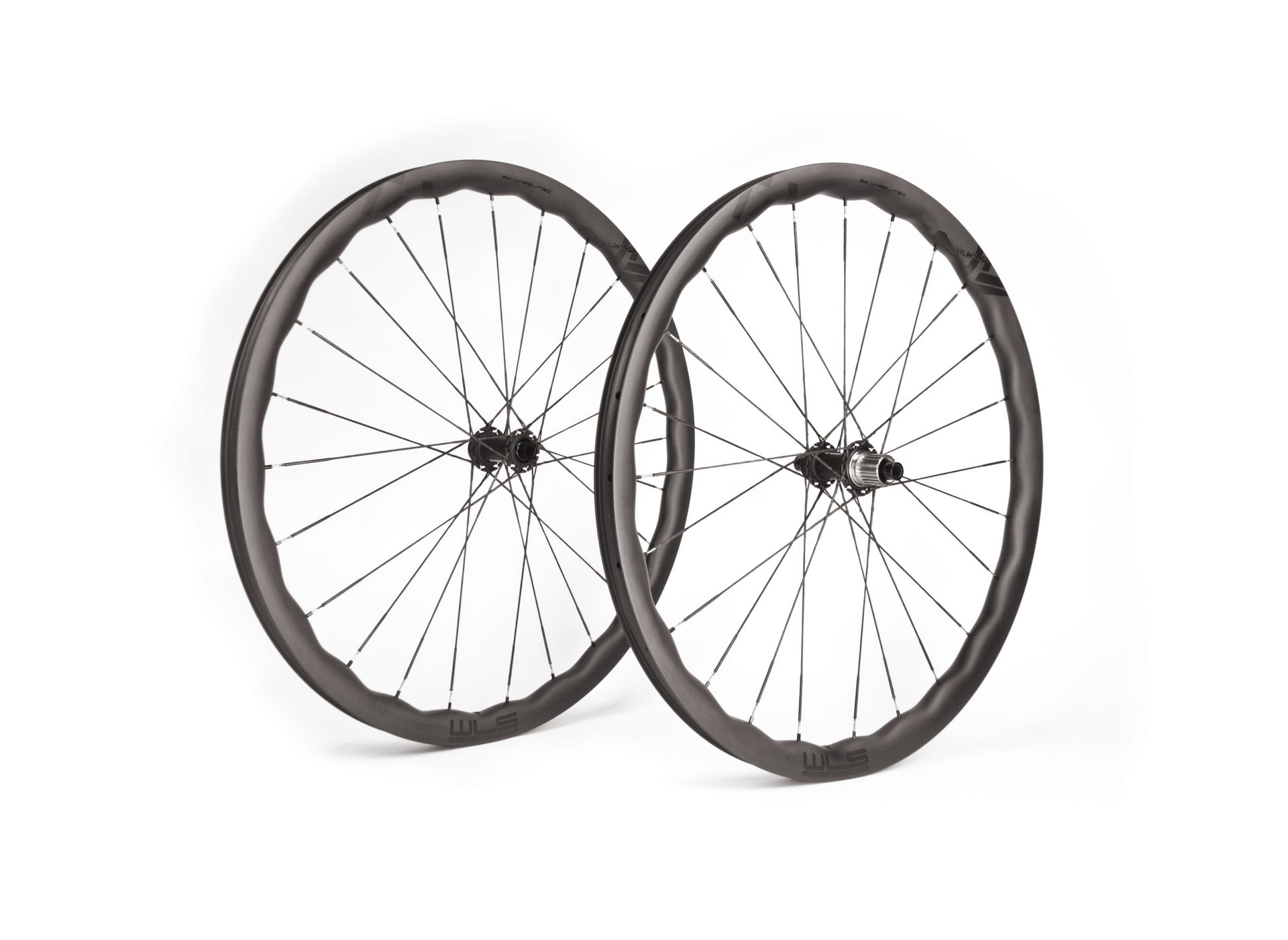

WLS27 in general:
34,2mm Width Ext / 27mm Width Int / 40mm+ tires
MODEL DETAILS:
WLS27/35: 45mm Depth / 380g
WLS27/50: 45mm Depth / 420g
Tailwind's new WLS series offers an innovative experience. With a waved rim design for added aerodynamic benefits and increased radial compliance, these rims take performance to the next level. Their high-volume multi-purpose design is optimized for outstanding performance with both wider road tires from 28 mm and up and gravel tires. Tailwind WLS wheels are designed to get the maximum potential out of your bike, so you can enjoy top performance and reliability no matter the terrain.

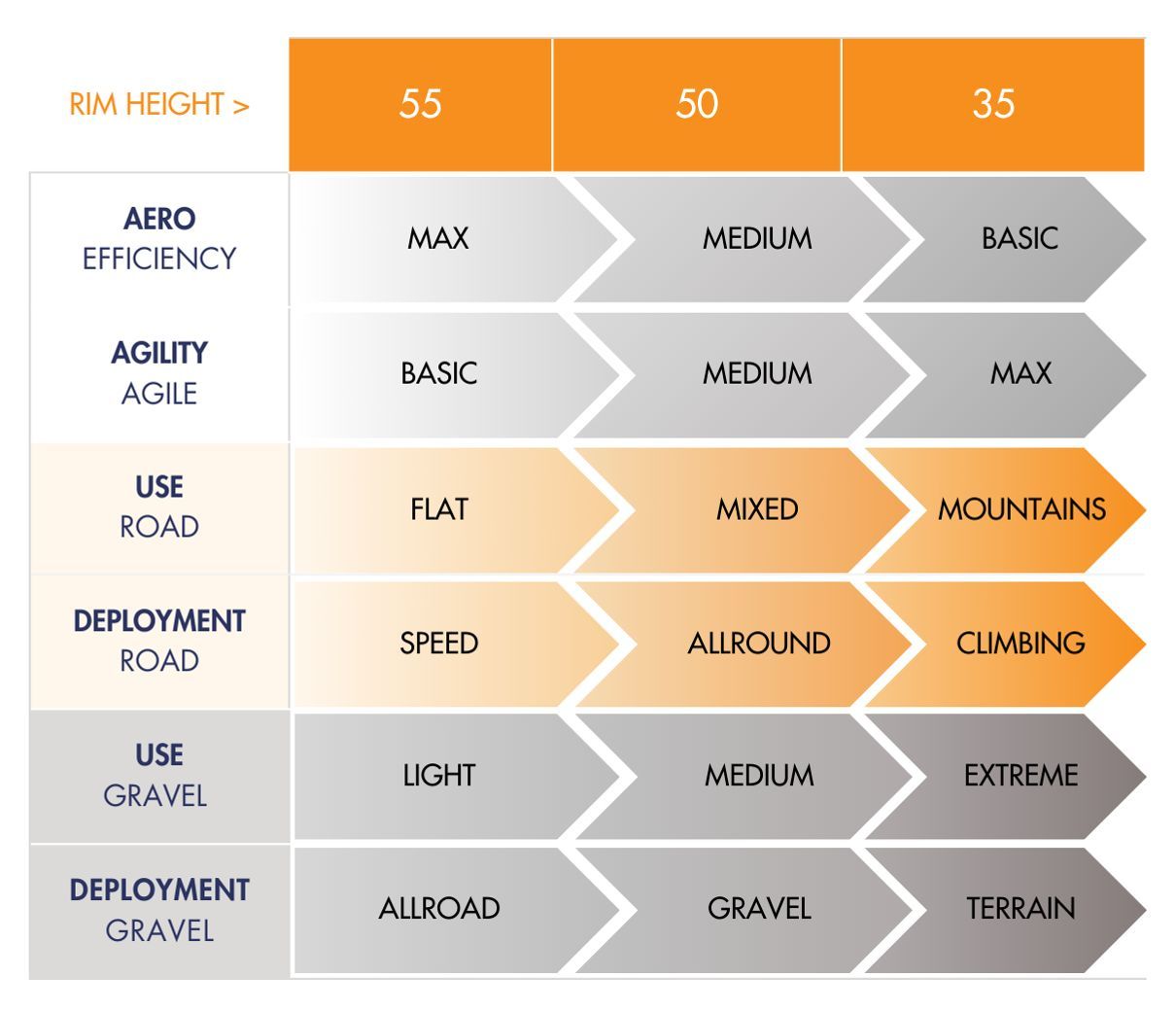

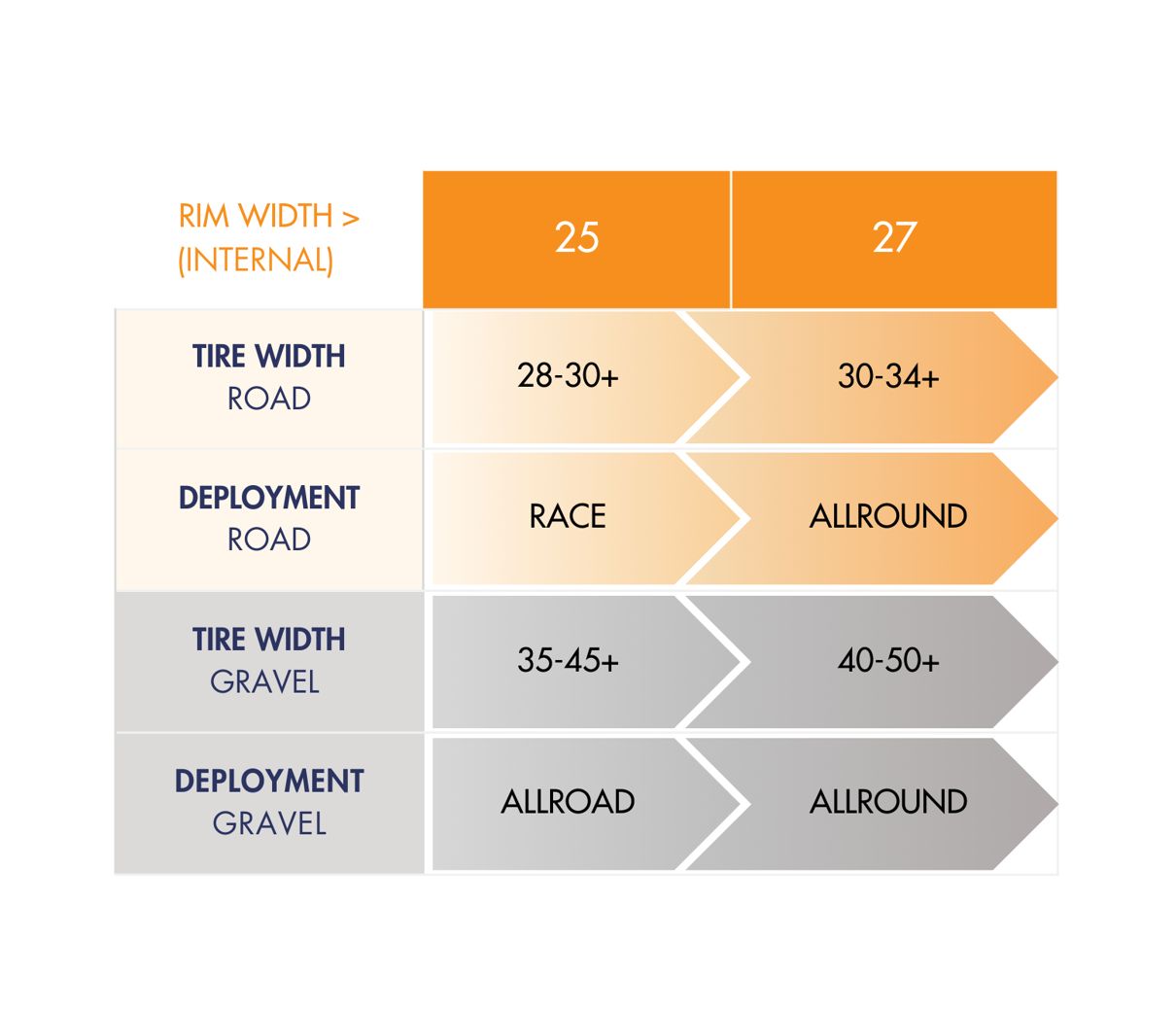

The WLS series is available in (internal) width sizes 25|27 and for each width size in various heights ranging from 35|45|55mm, see specs.

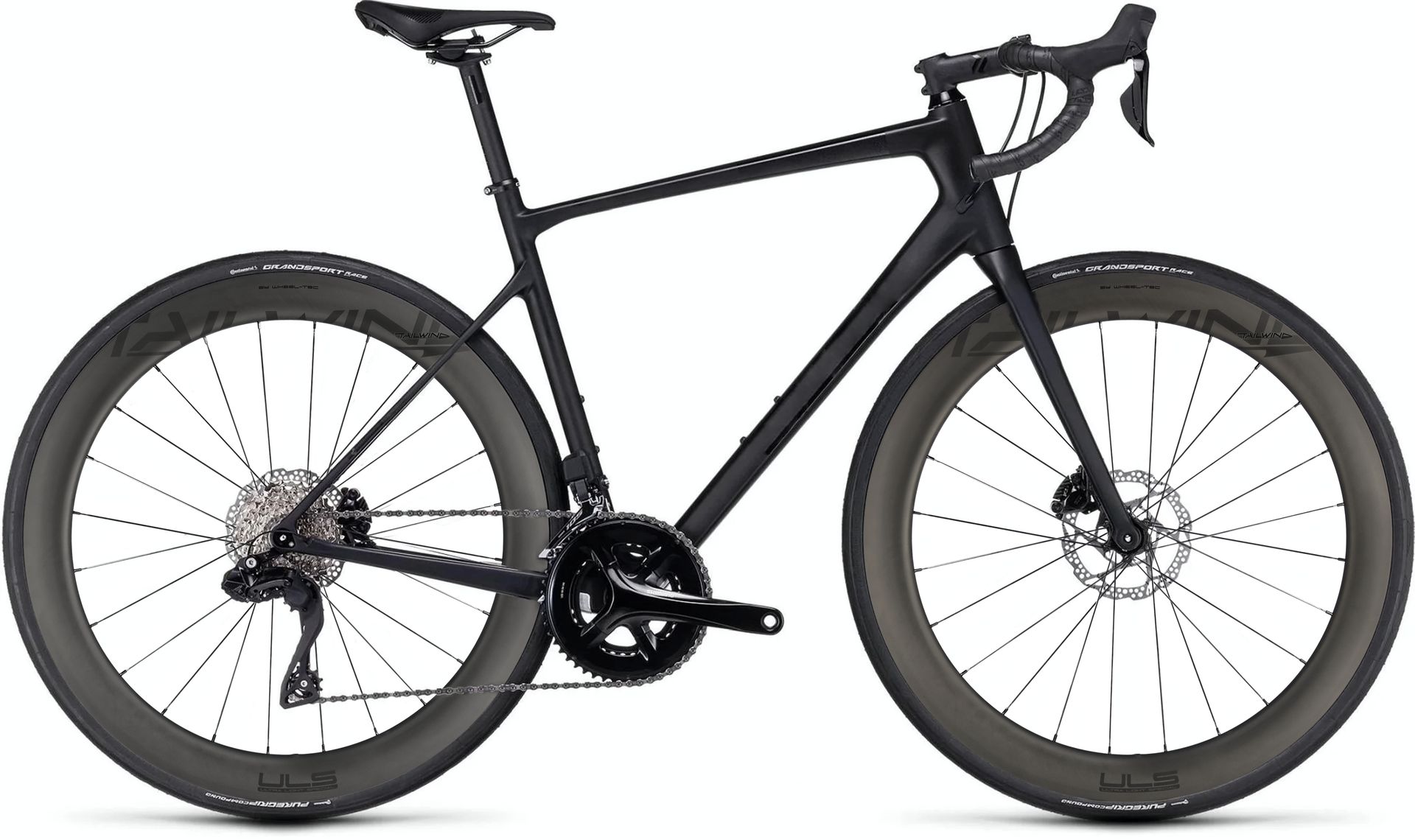

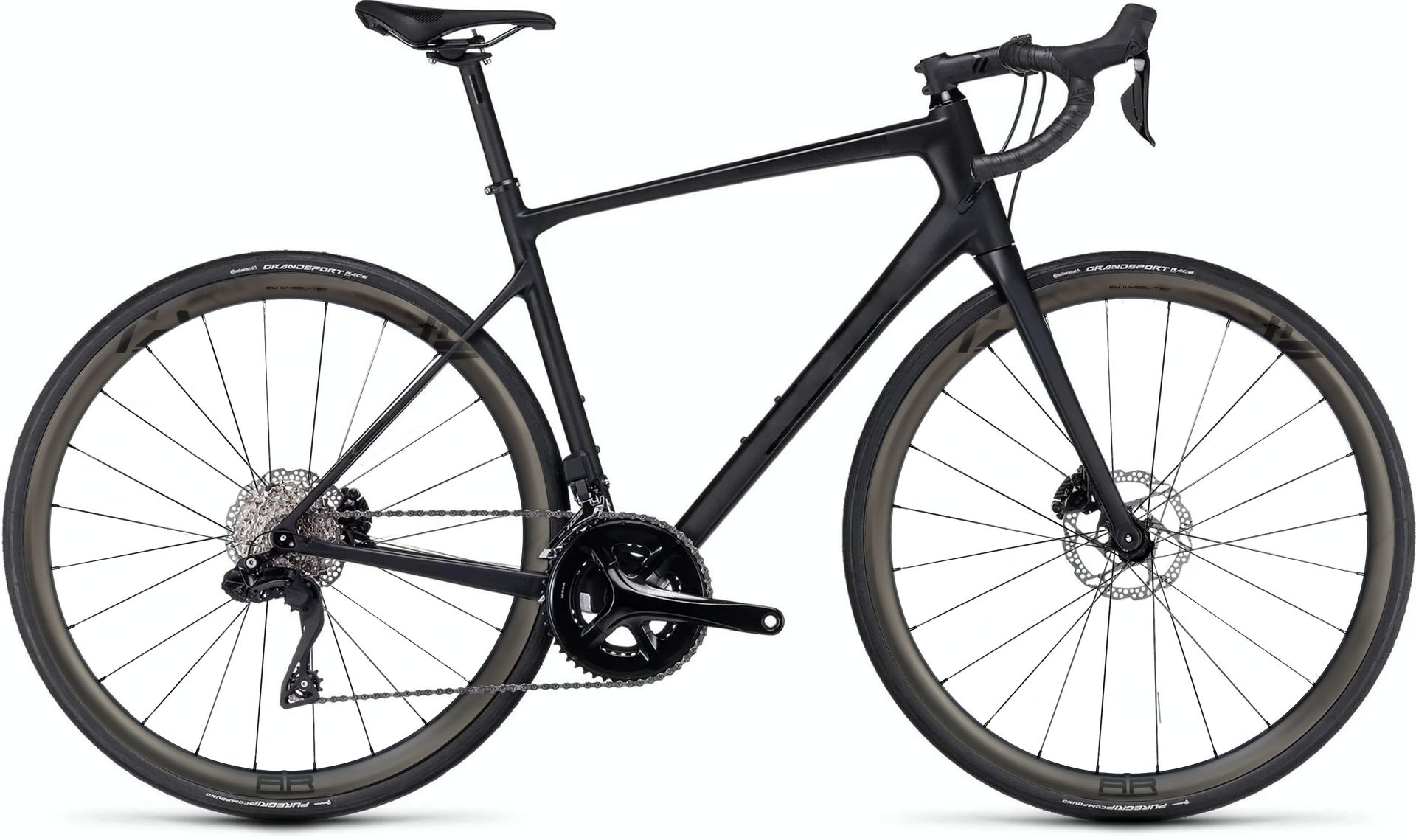

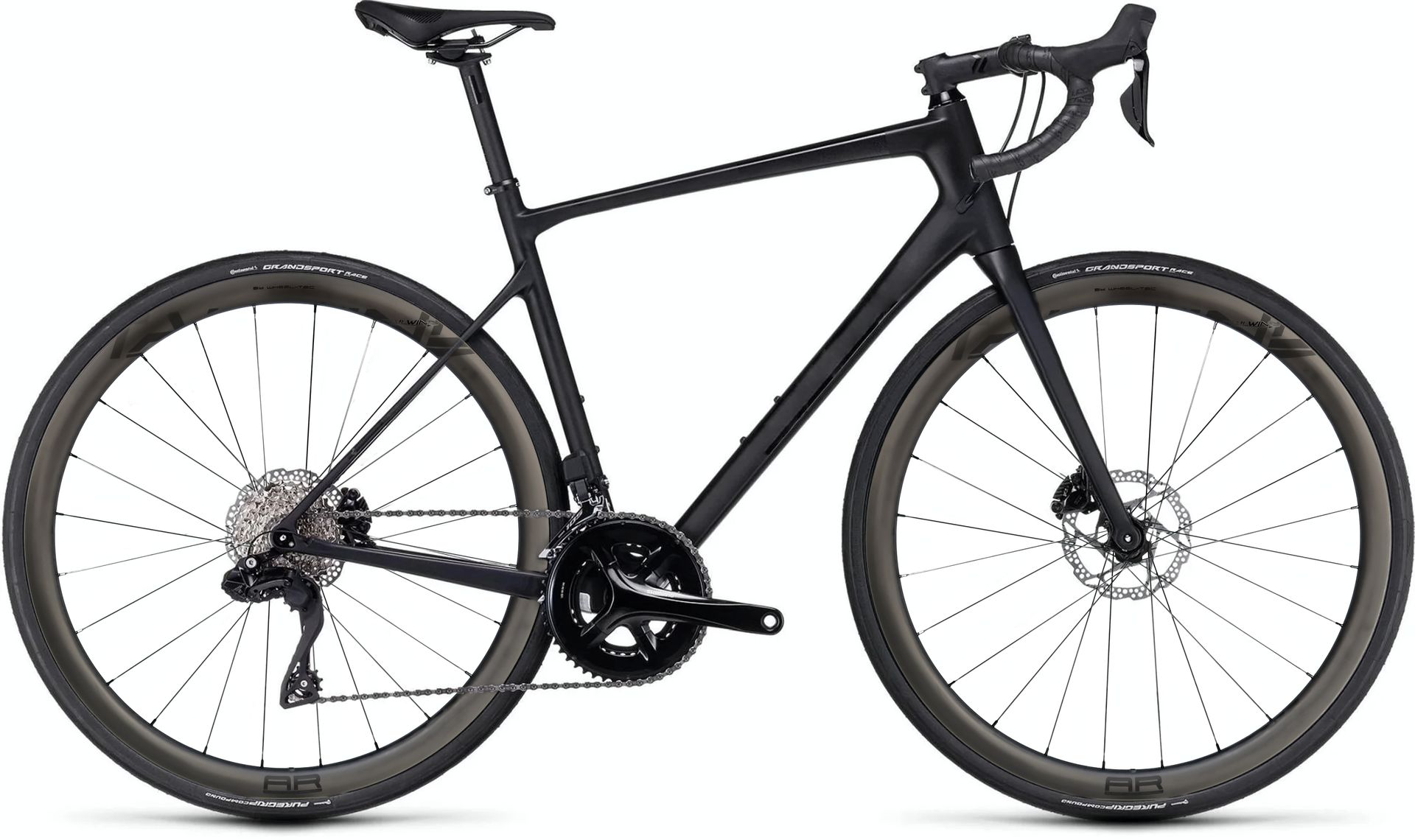

HOW DOES IT LOOK IN MY BIKE? (Road SETUP)
TAILWIND TECH
TAILWIND TERMINOLOGy
Super Light Special.
Applying the latest techniques creates an extra-light construction while maintaining rigidity.
ULTRA Light Special.
The superlative. Space-age technology (including in-mold technology) and the latest resins (resin & fiber), allowing us to work even more thin-walled (lighter) without sacrificing structural rigidity.
